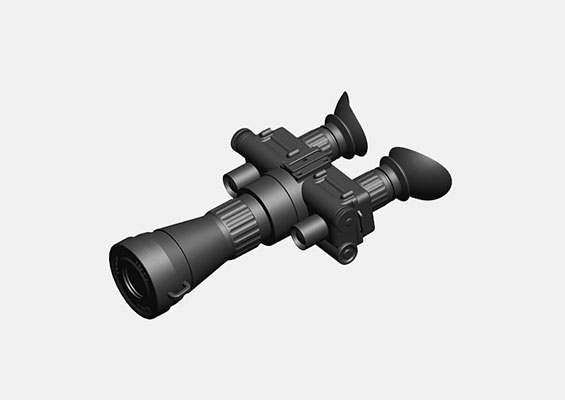

This model “single tube, dual eye” one of the most popular Gen2+/ gen3 night vision goggles in industry. Fully adjustable, padded headgear allows the device to be flipped-up or quickly detached from the mask. They’re lightweight, fully submersible, rugged, precisely built and easy to use.
1. IP65 or IP67 waterproof;
2. Automatic shut off when flipped up;
3. No power consumption when in standby;
4. Embedded spring in battery’s cap;
5. Fully adjustable head mount;
6. Mil-spec multi-coated optic;
7. Automatic brightness control;
8. Bright source protection;
| Image intensifier | Gen2+/gen3 |
|---|---|
| Magnification | 4X |
| Resolution ( lp/mm) | 45-57/51-57 |
| Photocathode | S25/GaAs |
| S/N （dB） | 15-21/18-25 |
| Sensitivity 2850K（uA/lm） | 450-500/500-600 |
| Life （H） | 10,000 |
| FOV（degree） | 40±3 |
| View distance（M） | 450-500/500-550 |
| IPD range | 60-70mm |
| Diopter range | ±5 |
| Optical system | F1.4, 55mm FL=70 |
| Lens coating | Fully multilayer broadband coating |
| Distance range（M） | 5M–∞ |
| Auto anti strong light | High sensitivity broadband detection |
| Rollover detection | Solid non-contact automatic detection |
| Size(No eyeshade) | 195x135x69mm |
| Material | Aviation aluminum |
| Weight (no battery) | 453g |
| Battery Voltage | 2.6-4.2V |
| Battery type | AA (2) |
| Battery life（H） | 80(IR OFF) 40(IR ON) |
| Temperature range（℃） | -40/+50 |
| Humidity range | 5%-98% |
| Waterproof | IP65（IP67 optional） |
