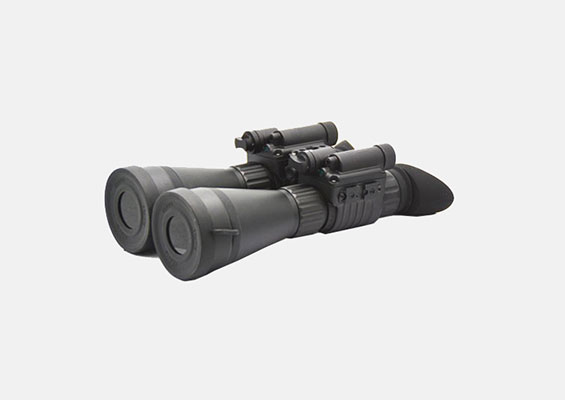

The Multifunction night vision series is a new product developed based on the latest electronic technology. The night vision series uses a high performance Gen2+/gen3 image intensifier. they has excellent performance, small size, light weight, clear imaging and simple operation. High cost performance. The magnification factor can be changed by replacing the objective lens (or connecting magnifying lenses). The product can be connected to digital cameras, cameras and video cameras(built-in partition), with the gun aiming fixture can be used for hanging guns or for individual use.
1. IP65 or IP67 waterproof;
2. Bright source protection;
3. Mil-spec multi-coated optic;
4. Automatic brightness control;
5. Fully adjustable head mount;
6. Embedded spring in battery’s cap;
7. No power consumption when in standby;
| Image intensifier | Gen 2+/gen 3 |
|---|---|
| Magnification | 5X |
| Resolution ( lp/mm) | 45-57/51-57 |
| Photocathode | S25/GaAs |
| S/N （dB） | 15-21/18-25 |
| Sensitivity 2850K（uA/lm） | 450-500/500-600 |
| Life （H） | 10,000 |
| View of angle（degree） | 12+/-3 |
| View distance（M） | 580-650/650-700 |
| Diopter range | ±5 |
| Graduation cursor | Internal（optional） |
| Optical system | F1.5, 65mm FL=90 |
| Lens coating | Fully multilayer broadband coating |
| Distance range（M） | 10–∞ |
| Auto anti strong light | High sensitivity broadband detection |
| Rollover detection | Solid non-contact automatic detection |
| Size(No eyeshade) | 220x203x65mm |
| Material | Aviation aluminum |
| Weight (no battery) | 1105g |
| Battery Voltage | 2.6-4.2V |
| Battery type | AA(2) |
| Battery life（H） | 80(IR OFF) 40(IR ON) |
| Temperature range（℃） | -40/+50 |
| Humidity range | 5%-98% |
| Waterproof | IP65（IP67 optional） |
