BBQNVG Housing Kit

  • MODEL: BBQNVG
  • BODY COLOR: Black or customized
  • SERVICE: OEM and ODM
  • CUSTOMIZE: LOGO and PACKING BOX
  • WARRANTY: 2 YEARS

We offer the BBQNVG completed device with battery packs.

Main features:

  1. Butterfly bridge;

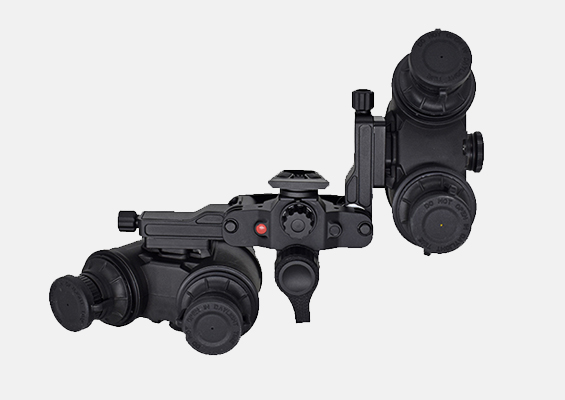

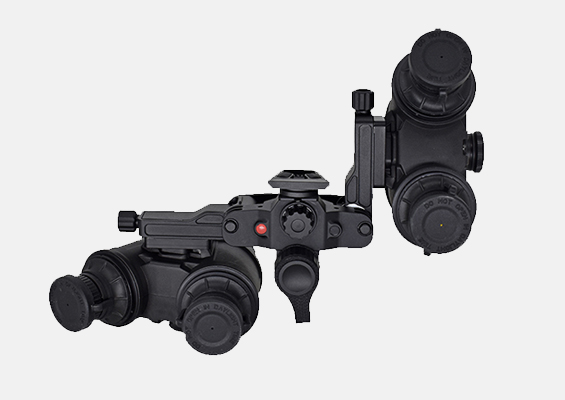

  2. Flip aside, auto shut off;
  3. 1X magnification;
  4. FOV 120 ±2 degree;
  5. Build-in low battery indicator;
  6. Build-in IR ON/OFF indicator;
  7. Design with diopter adjusting wheel;
  8. Build-in IR;
  9. Build-in battery compartment;
  10. Support battery packs;
  11. IP65 waterproof;
  12. Sample packed by safety case;
  13. IPD can be adjusted.



The full body made by high quality plastic military standard quality, the tubes easy to buy at North American and European, please send inquiry through below contact form, you will got reply in 12 hours. Thanks



Introduction

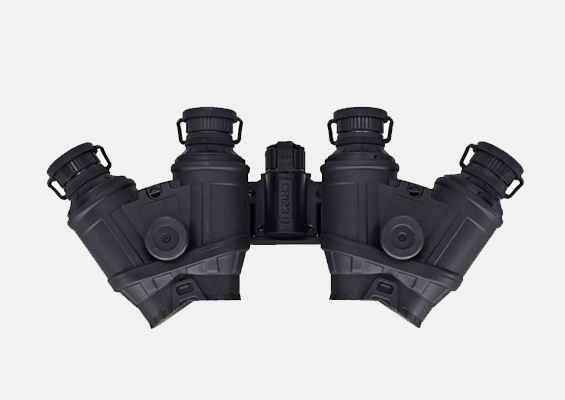

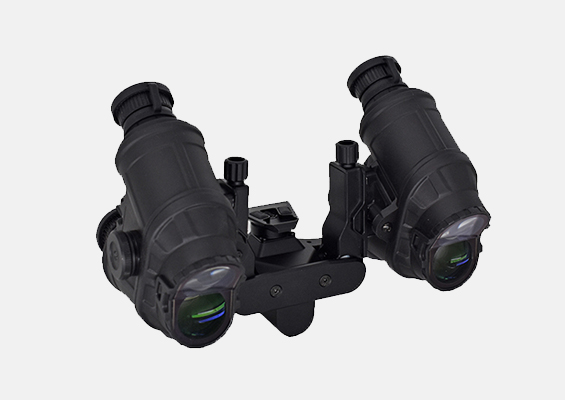

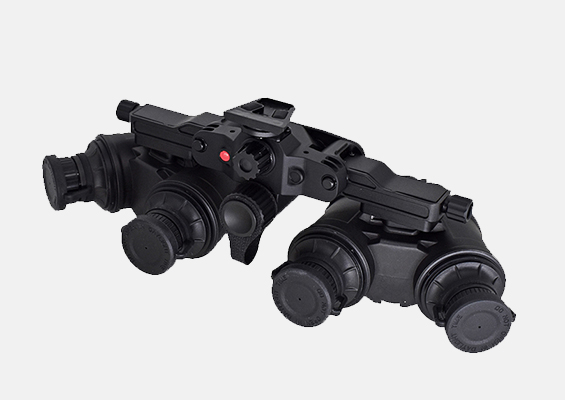

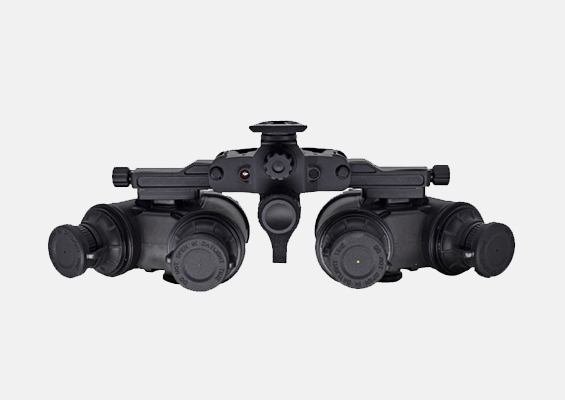

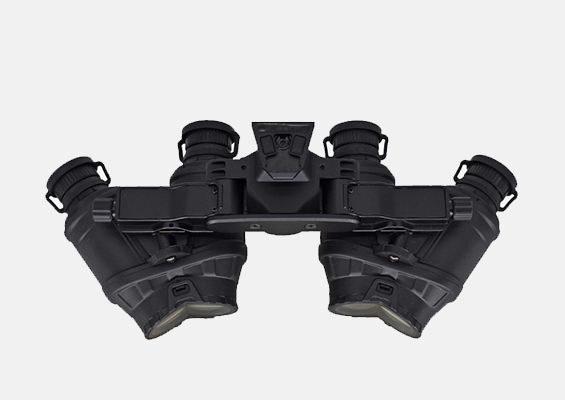

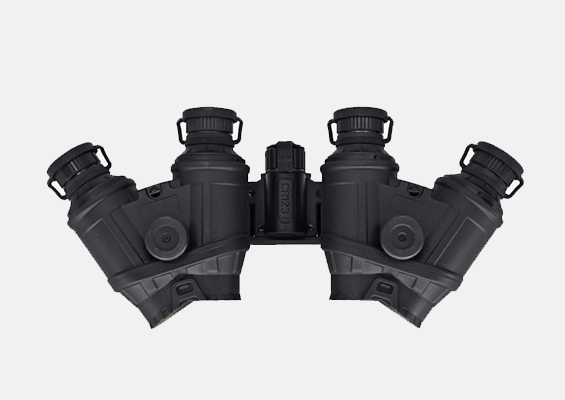

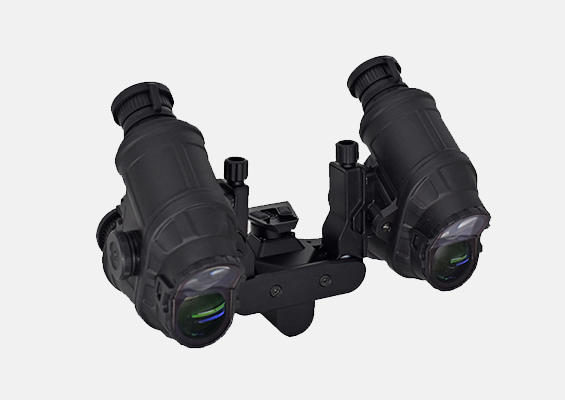

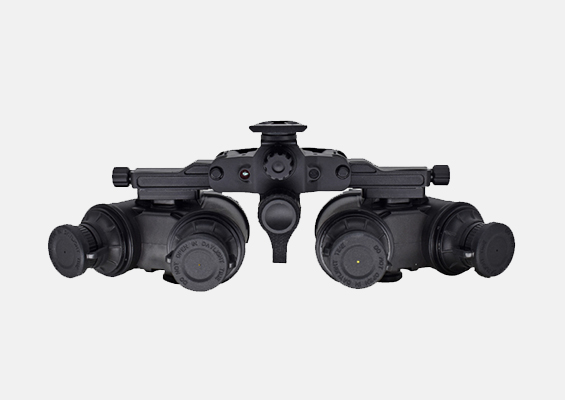

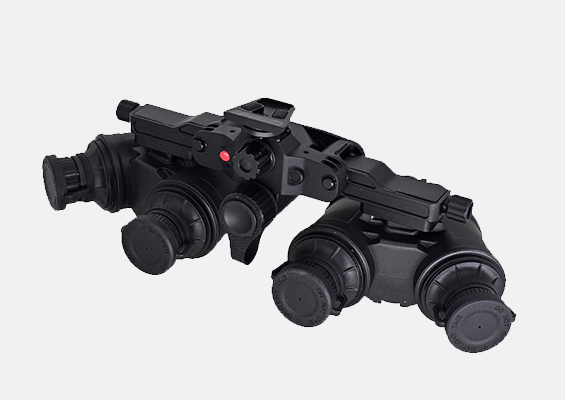

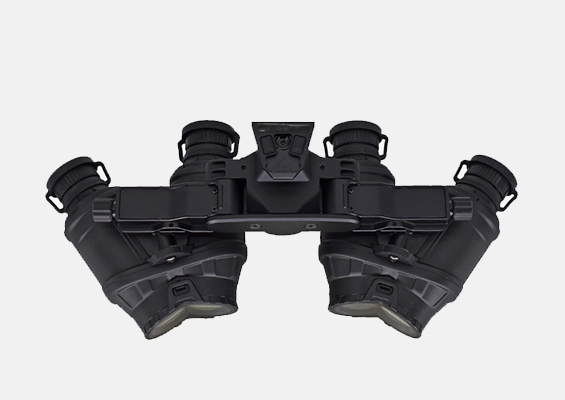

LinduNV butterfly bridge quad tube night vision goggles (BBQNVG)

The heart of its remarkable design lies the unique butterfly bridge, making it set apart from conventional quad tube night vision goggles.

This ingenious design allows quick and easy adjustment, not only providing stability and durability but also providing effortless portability, adapting to various viewing angles and scenarios.



Image intensifier Gen2+ / gen 3
Magnification 1X
Structural mode 4 eyed butterfly bridge GPNVG
Installation Head mounted
Battery type Lithium battery (CR123Ax1)
External battery packs (CR123Ax4)
Voltage range 2.6-4.2V
Control type ON/IR/AUTO
FOV(degree) Horizontal 120+/-2 °
Vertical 50 +/-2 °
Power <0.2W
Battery capacity 800-3200maH
Continue working time 30-80H
Parallelism of optical axes <0.1°
Optical aperture F1.18 22.5mm
Optical MTF 120LP/mm
Optical distortion 2% Max
Relative Illumination >75%
Lens coating FMC
Focus range 0.25M–∞
»
