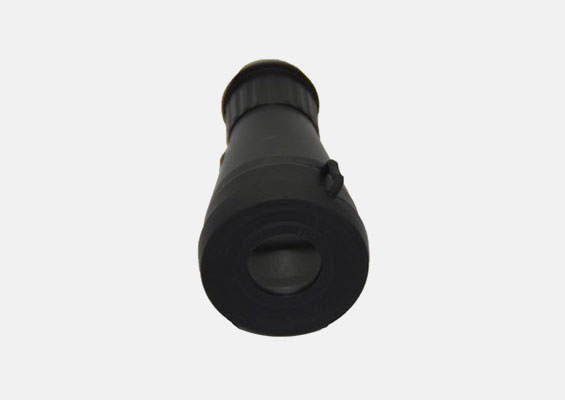

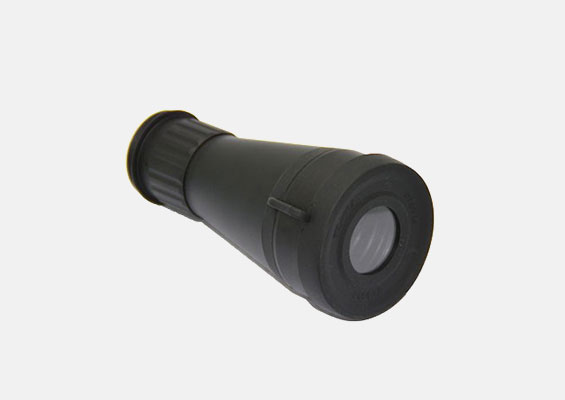

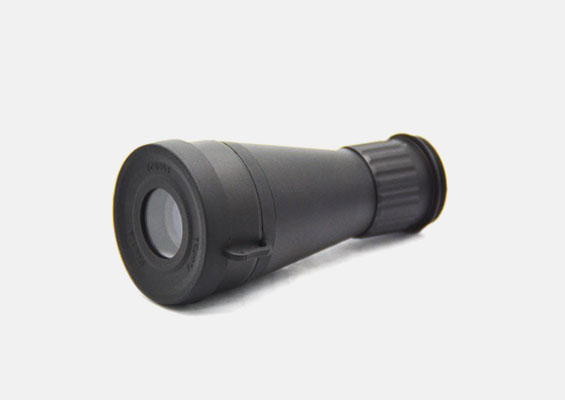

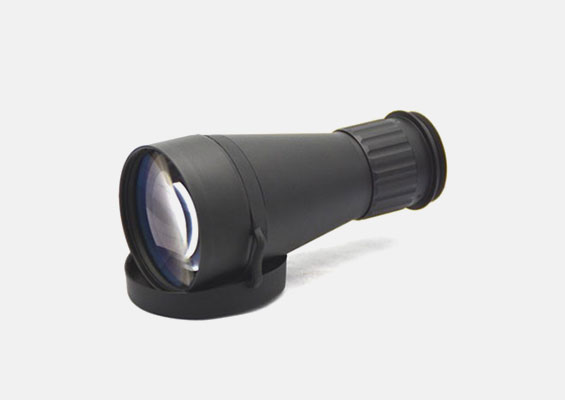

LDAS012 digital objective lens is a high-performance universal objective lens. lt can cooperate with CMOS imagesensors of various target surfaces to obtain high definition and low illumination environment images. lt can beused in digital day and night riflescope lt has the advantages of lowillumination, strong adaptability, highimaging quality, high multiplier, light weight, high cost performance and so on.
1.Good optical quality: high resolution, small distortion, large aperture, strong product adaptability.
2.Light weight, concise design and elegant appearance.
3.Variable aperture, cover the objective lens in the daytime, reduce the aperture, improve the image effect, openthe aperture at night, increase the aperture, improve the night vision effect.
| 9X objective lens | technical parameter |
| Field of view(dge) | 6-12 |
| Optical power | 5X Φ42 FL=50 |
| Target surface | 1/3-2/3时CMoS |
| Relative Illumination | 95% |
| Optical aperture (objective lens) | F1.3/2.6 |
| Optical MTF | 150LP/mm |
| Optical distortion | 0.5%Max |
| Range of focus | 5M-oo |
| Mode of focus | Manual |
| coating | Multilayer Composite Ultra Wideband Blue Film |
| material | High Strength Aviation Aluminum |
| Impact resistance | >1000G |
| Operating temperature | -50–+80C |
| Relative Humidity | 5%-95% |
| Environment rating | IP65/IP67 ( optional ) |
| Dimensions | 85x62x42 |
| weight | 129g |
