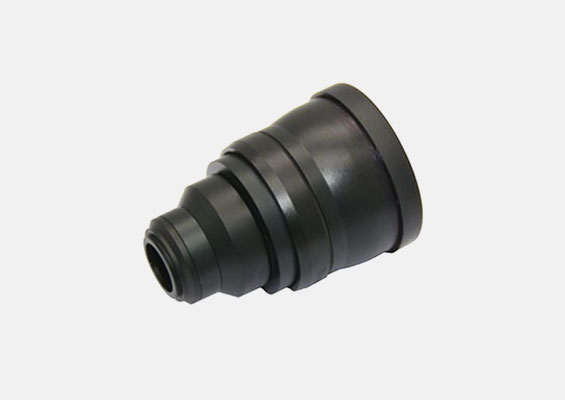

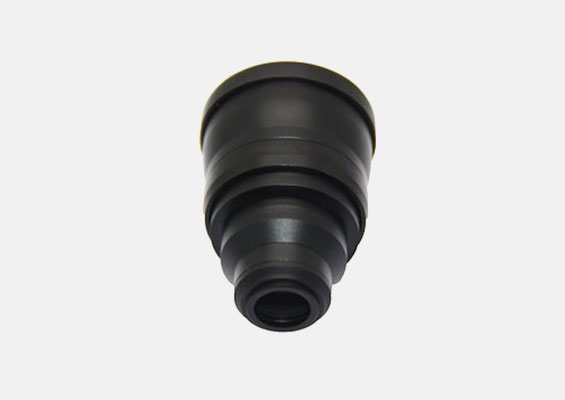

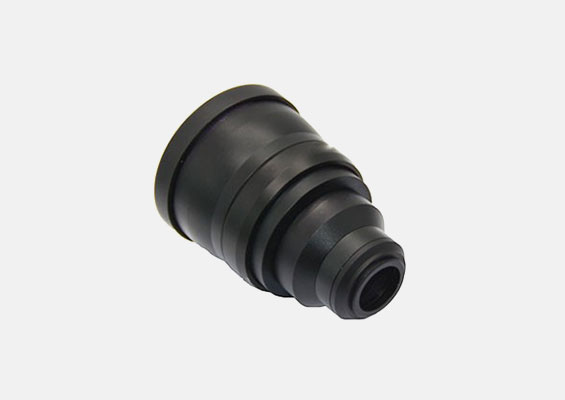

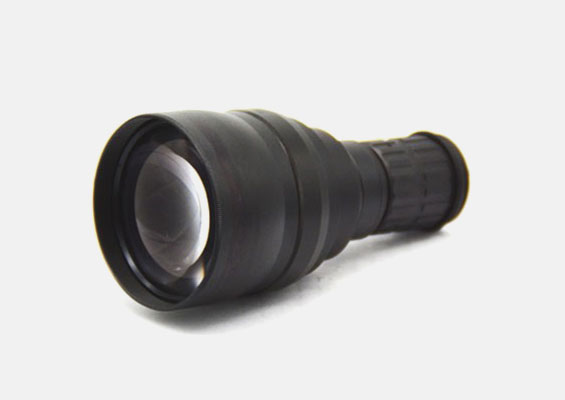

6X Mil-Spec Magnifier Lens

  • MODEL:LDAS005
  • BODY COLOR: Black
  • SERVICE: OEM and ODM
  • CUSTOMIZE: LOGO and PACKING BOX
  • WARRANTY: 1 YEAR

6X Mil-Spec Magnifier Lens is a class multiplier objective specially designed fornight vision products. 6X Mil-Spec Magnifier Lens is can be connectedto the front end of the original lens directly through cascade and thread without removing the original lens, so asto increase the magnification of the magnifier lens and increase the observation distance.6X Mil-Spec Magnifier Lens is connectedto the front end of a doubled magnifier lens, which can double the optical magnification of night vision.The frontend of the magnifier lens can also increase the cascade magnifier lens, which will increase the optical
magnification of the system more.

Product characteristics:

1.This product has novel design idea, compact structure, convenient installation, no influence on the waterproofeffect of the original product, and is safe and reliable.



2.Large aperture, clear imaging, multi-stage series connection, up to 6X.



3.To increase the multi-function of the system, it is only necessary to disassemble and install the multiplier mirrorto change the product from wearing to long-distance observation.



Name Specification
Multiplier mirror series 3
Doubling rate 6x
Optical aperture 56mm
Object lens interface external screw teeth
Multiplier interface Internal screw teeth
Material High Strength Aviation Aluminum
Dimensions 65x93mm
weight 284g
»
