2X Mil-Spec Magnifier Lens

  • MODEL:LDAS003
  • BODY COLOR: Black
  • SERVICE: OEM and ODM
  • CUSTOMIZE: LOGO and PACKING BOX
  • WARRANTY: 1 YEAR

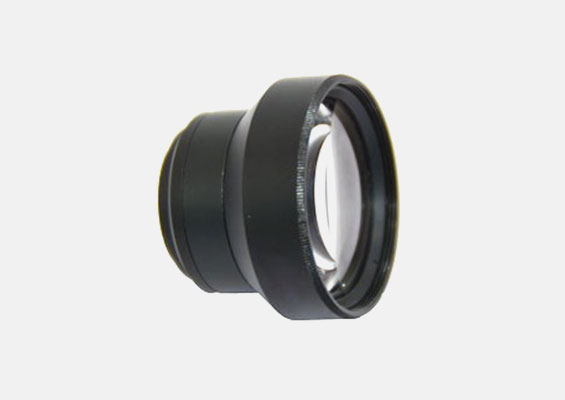

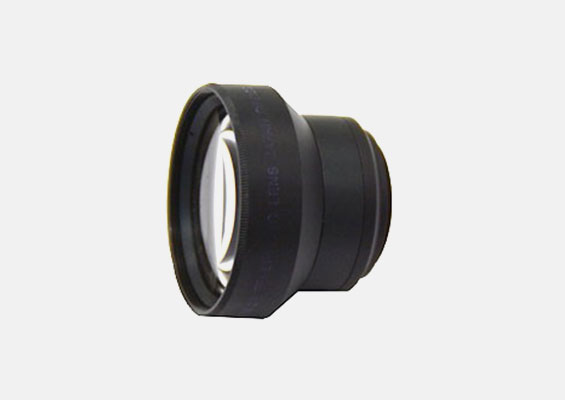

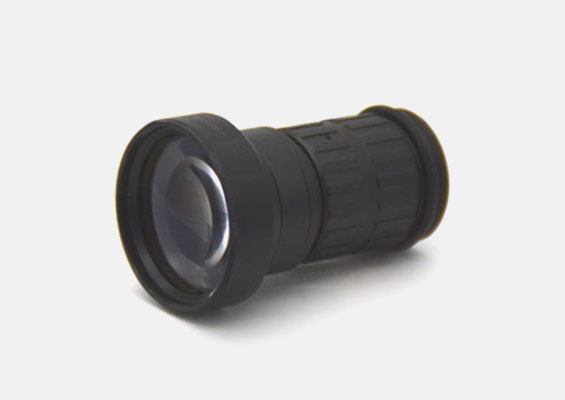

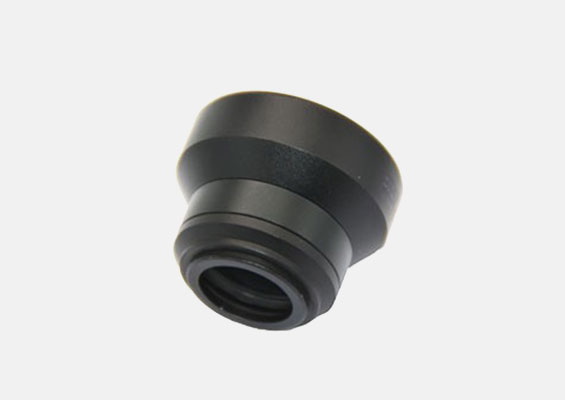

2X Mil-Spec Magnifier Lens is a class multiplier objective specially designed for night vision products. The multiplier lens can beconnected to the front end of the original lens directly through cascade and thread without removing the originallens, so as to increase the magnification of the magnifier lens and increase the observation distance.2X Mil-Spec Magnifier Lens isconnected to the front end of a doubled magnifier lens, which can double the optical magnification of nightvision.The front end of the multiplier mirror can also increase the cascade magnifier lens, which will increase theoptical magnification of the system more.

Characteristics:

1.This product has novel design idea, compact structure, convenient installation, no influence on the waterproofeffect of the original product, and is safe and reliable.



2.Large aperture, clear imaging, multi-stage series connection, up to 6X.



3.To increase the multi-function of the system, it is only necessary to disassemble and install the multiplier mirrorto change the product from wearing to long-distance observation.

  • Name Specification
    Multiplier mirror series 1
    Doubling rate 2x
    Optical aperture 40mm
    Object lens interface external screw teeth
    Multiplier interface Internal screw teeth
    Material High Strength Aviation Aluminum
    Dimensions 46x35mm
    weight 53g
»
